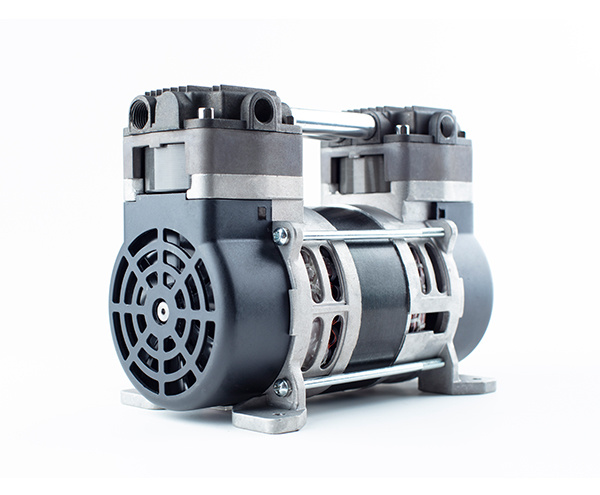

OLF190A

关键词:

Classification:

Oil free air compressor

Keyword： OLF190A

E-mail:

vacuumpump@airipa.cn

Message

Product details

Five Advantages
Casting Craftsmanship Products Speak with quality and let others imitate

1.Highly precise anti-rust treatment of gas storage tank
Fine treatment to ensure the cleanliness of the gas source from the source.

2.Dual protection for motor Motor never burns out
Protector imported material can jump more than 100,000 times.

3.Low noise Upgraded noise reduction Enjoy comfortable space
Built-in silencer, thicker cabinet, oil-free and silent.

4.Good heat dissipation 24 hours of non-stop operation
Temperature rise maintains about 50K Continuous use of 24 hours without heat protection shutdown

5.100% copper wire Grade 1 energy-efficient motor
The same pumping speed, lower energy consumption, super energy-saving

product parameters

Model		OLF190A
Power supply		AC50Hz
Flow Performance LPM@BAR	0	48
	1	35
	1.5	30
	2	28
	2.5	25
Pressure performance BAR	Rated Pressure	1.4
	Maximum Pressure	2
	Restart Pressure	0
Environmental temperature	Minimum Temperature	-5
Environmental temperature	Minimum Temperature	40
Input power WATTS		190
Number of revolutions per minute		1390
Net weight		6

Model		OLF100A-76
Power supply		DC
Flow Performance LPM@BAR	0	48
	1	35
	1.5	30
	2	28
	2.5	25
Pressure performance BAR	Rated Pressure	2
	Maximum Pressure	5
	Restart Pressure	2
Environmental temperature	Minimum Temperature	-5
Environmental temperature	Minimum Temperature	40
Input power WATTS		145
Number of revolutions per minute		1700
Net weight		2.8

Model		OLF295A
Power supply		AC50Hz
Flow Performance LPM@BAR	0	103
	1	82
	1.5	77
	2	72
	2.5	65
Pressure performance BAR	Rated Pressure	2
	Maximum Pressure	2.5
	Restart Pressure	0
Environmental temperature	Minimum Temperature	-5
Environmental temperature	Minimum Temperature	40
Input power WATTS		325
Number of revolutions per minute		1400
Net weight		6.3
