OLF1100A

关键词:

Classification:

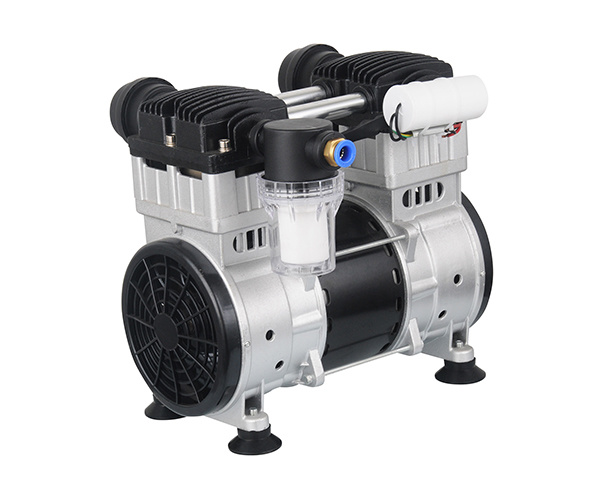

Oil free air compressor

Keyword： OLF1100A

E-mail:

vacuumpump@airipa.cn

Message

Product details

Five Advantages
Casting Craftsmanship Products Speak with quality and let others imitate

1.Highly precise anti-rust treatment of gas storage tank
Fine treatment to ensure the cleanliness of the gas source from the source.

2.Dual protection for motor Motor never burns out
Protector imported material can jump more than 100,000 times.

3.Low noise Upgraded noise reduction Enjoy comfortable space
Built-in silencer, thicker cabinet, oil-free and silent.

4.Good heat dissipation 24 hours of non-stop operation
Temperature rise maintains about 50K Continuous use of 24 hours without heat protection shutdown

5.100% copper wire Grade 1 energy-efficient motor
The same pumping speed, lower energy consumption, super energy-saving

product parameters

Model		OLF550A-106
Power supply		DC
Flow Performance LPM@BAR	0	200
	2	160
	4	137
	6	125
	8	103
Pressure performance BAR	Rated Pressure	7
	Maximum Pressure	8
	Restart Pressure	4
Environmental temperature	Minimum Temperature	-5
Environmental temperature	Minimum Temperature	40
Input power WATTS		520
Number of revolutions per minute		175
Net weight		6.8

Model		OLF980A
Power supply		AC50Hz
Flow Performance LPM@BAR	0	200
	2	160
	4	137
	6	125
	8	103
Pressure performance BAR	Rated Pressure	7
	Maximum Pressure	8
	Restart Pressure	4
Environmental temperature	Minimum Temperature	-5
Environmental temperature	Minimum Temperature	40
Input power WATTS		980
Number of revolutions per minute		1380
Net weight		12

Model		OLF1100A
Power supply		AC50Hz
Flow Performance LPM@BAR	0	200
	1	160
	1.5	137
	2	125
	2.5	103
Pressure performance BAR	Rated Pressure	7
	Maximum Pressure	8
	Restart Pressure	1
Environmental temperature	Minimum Temperature	-5
Environmental temperature	Minimum Temperature	40
Input power WATTS		1100
Number of revolutions per minute		1580
Net weight		17
